1SMD Non-Ghosting Bulbs

  • $0.89
Click buttons for bulk discounts
25 Packs 100 Packs

If you have an insert (or other type of controlled lighting) that subtly flickers when it should be off, you need non-ghosting bulbs to fix the issue. Your game is sending a small amount of voltage to the socket, not enough to light an incandescent bulb, but enough for an LED.

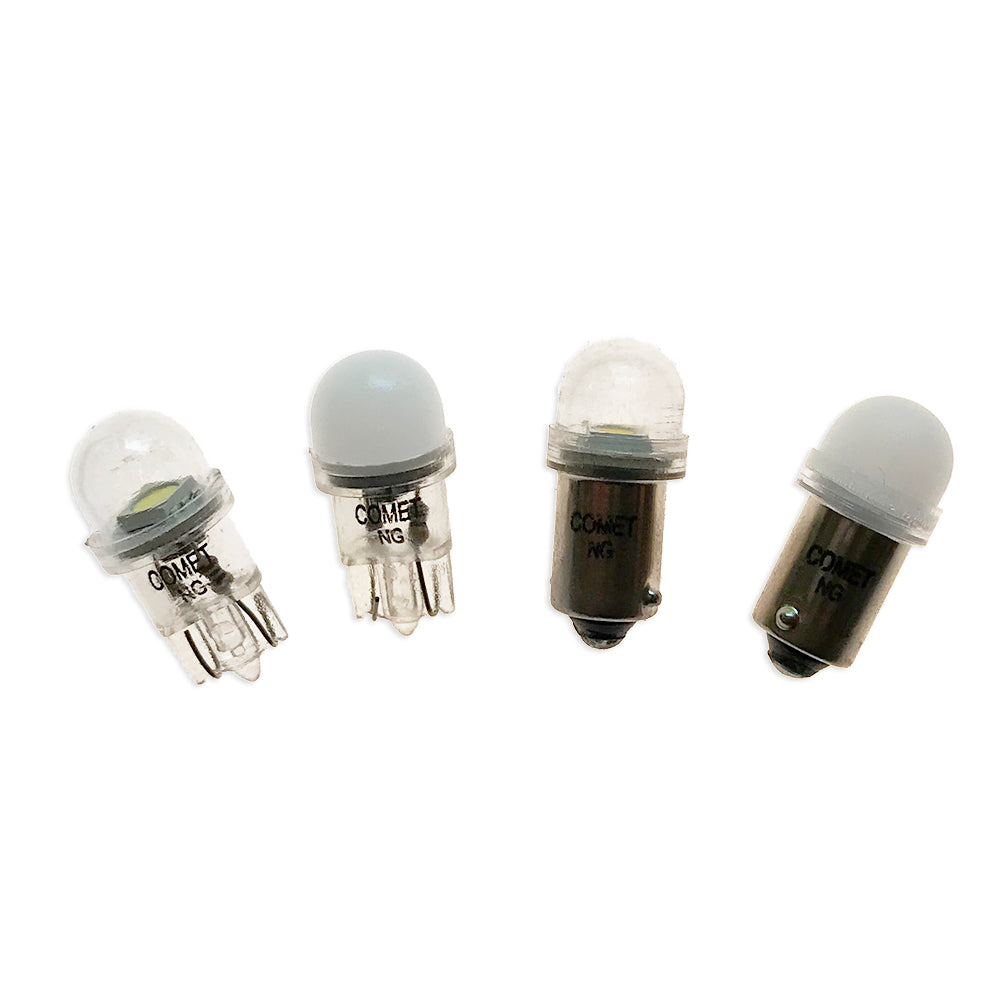

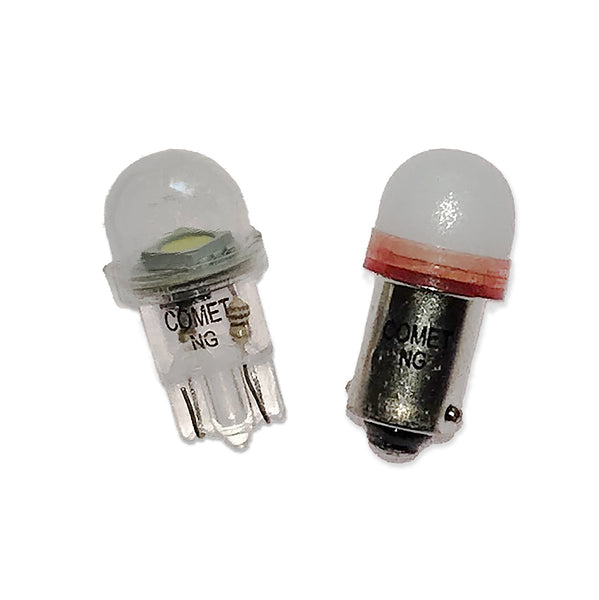

These 1SMD non-ghosting bulbs are our standard recommendation for inserts. They're a little more expensive, but contain a resistor that prevent small amounts of voltage from illuminating the bulb.

These bulbs have a slightly larger diameter than our standard bulbs. As such, they will not fit through smaller GI playfield holes, specifically in some 90s Gottlieb games. (You don't need to use non-ghosting bulbs for GI lighting anyway.)

Need help choosing color, lens type, or base type? Read the Art of LEDs.

Product Specs

Voltage 6.3v
Brightness 1.5x
Also known as "supreme brightness non ghosting"
Diode Size one 5050 diode
Specialty Properties Non-ghosting
